4″ Single Flare Skid Mounted (9 m)
€ 0,00
Our single flare skid mounted system is engineered for versatile gas flaring applications including sweet and sour natural gas. Additionally, it serves as an efficient vent system for gases like nitrogen venting.
Complete your mobile flare packages now and include our gas supply units and sprinkler systems.
Technical specifications
| Height | 9 m |
|---|---|
| Capacity | 50.000 Nm³/d |
| Inlet | 3”/2” Fig. 1502 |
| Gas supply inlet | 1’’ Fig. 1002 F |
| Span | Mobile skid |
| Transport dimensions (L x W x H) | 606 x 234 x 200 cm |
| Transport weight | 2800 kg |
Description

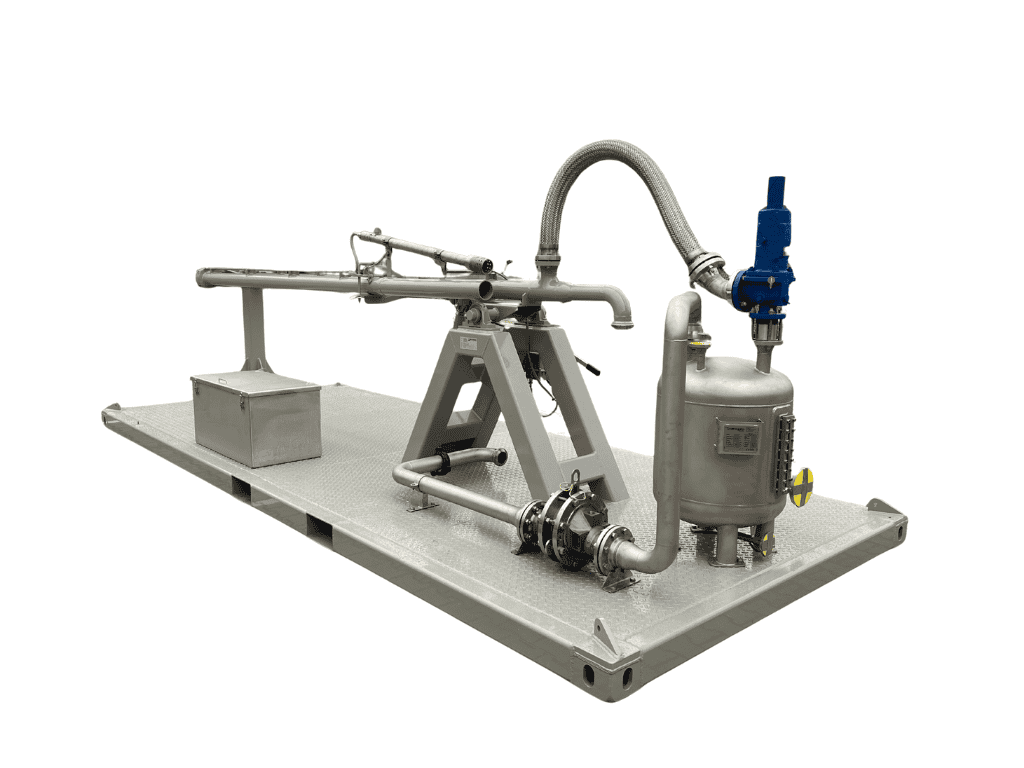

Our single flare skid mounted is equipped with a Pressure Safety Valve (PSV), ensuring optimal safety. The pilot burner features high-energy electronic spark ignition for reliable operation. For convenience, the ignition/control and battery unit are included in a sturdy flight case. Effortlessly raise the flare hydraulically with the installed pump and cylinder on the frame. The skid also features a stainless steel storage box housing all necessary accessories.
